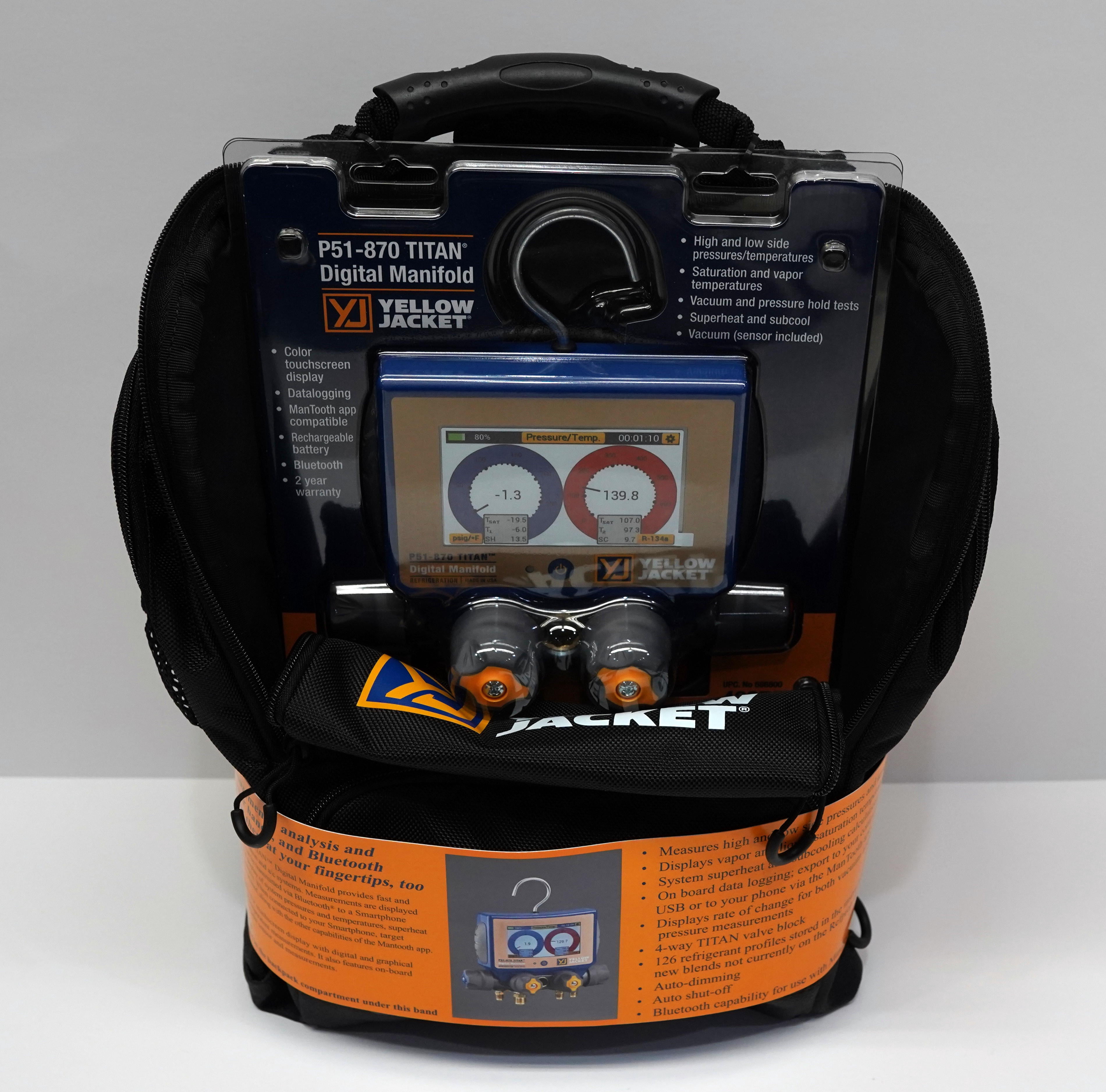

Yellow Jacket 40870 P51-870 Titan Digital Manifold

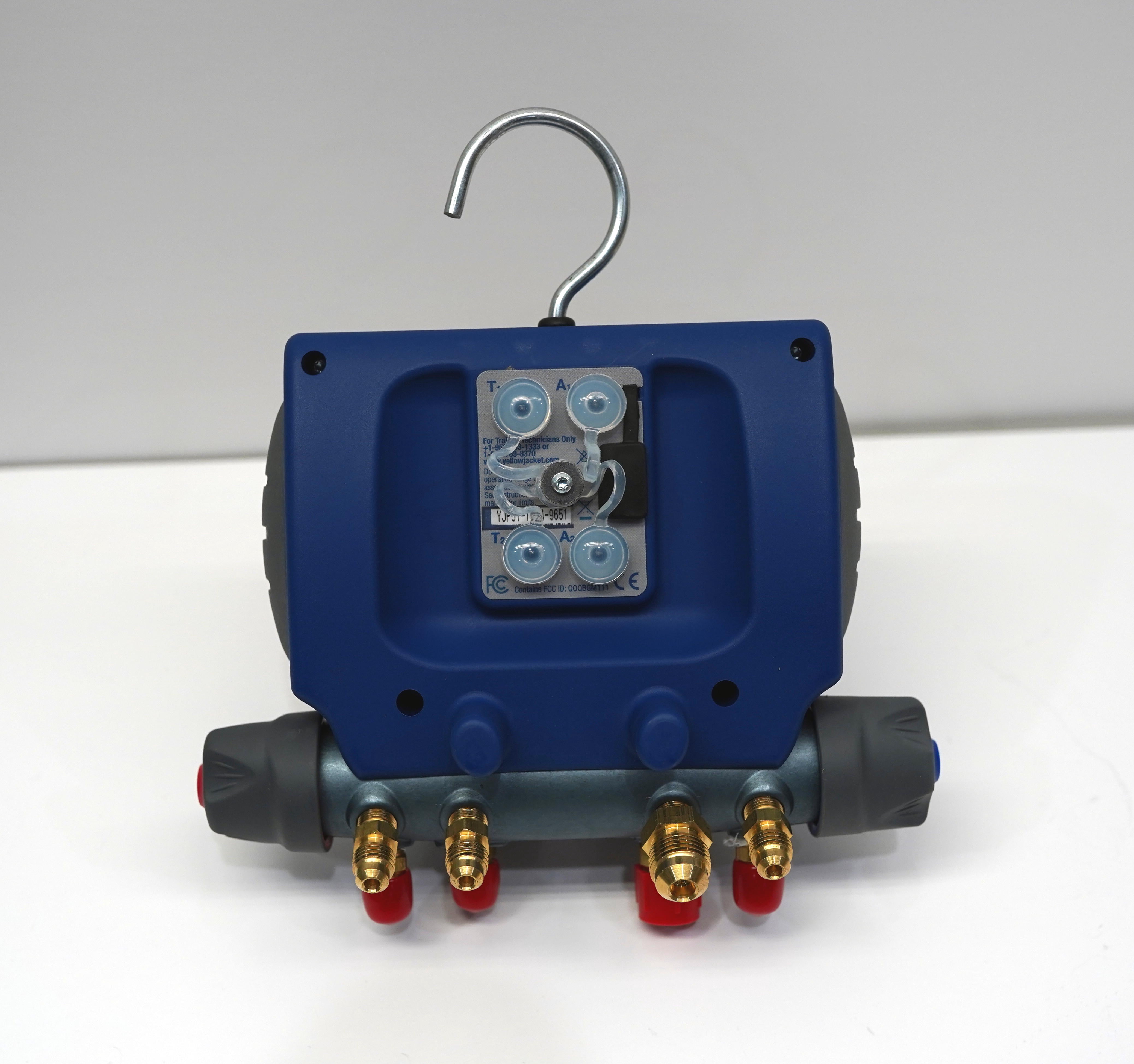

Yellow Jacket 40870 P51-870 Titan Digital Manifold The YELLOW JACKET P51 TITAN Digital Manifold Series provides ultimate system measurements with ease. This 4-valve manifold provides fast and accurate measurements for refrigeration and a/c systems. Measurements are displayed on a monochrome backlit digital display and can be transmitted via Bluetooth® to a Smartphone for even further analysis. Local display of system pressures and temperatures, superheat and subcool provide instant analysis. When connected to your Smartphone, target superheat and subcool are easily attained, along with all the other capabilities of the ManTooth app. Features And Benifits: Measures high and low side pressures and temperatures Displays vapor and liquid saturation temperatures System superheat and subcooling calculations On board data logging; export to your computer through USB or to your phone via the ManTooth app Pressure hold mode displays rate of change for both vacuum and positive pressure measurements 4-way TITAN valve block 126 refrigerant profiles stored in the instrument including new blends not currently on the Refprop database. Backlit display with auto-dimming Auto shut-off Bluetooth capability for use with ManTooth app Includes two temperature clamps Optional vacuum sensor available (included with P51-870) Vacuum measurements, targets and leak testing High and low alarms Re-chargeable battery with battery life indicator Continuous use no backlight: 80 hours Continuous use full backlight: 5 hours (40860); 4 hours (40870) US and international units (bar, psia, psig, kPa, MPa, kg/cm2) Maximum working pressure 700 psia (48.3 bar) USB charging port IP52 certified Robust housing Two year warranty
